GM LS Truck A/C Compressor Relocation Bracket Machined
GM LS Truck A/C Compressor Relocation Bracket Machined

Our Price: $212.00


Product Code: TSP-81204
Qty:

Description


OVERVIEW

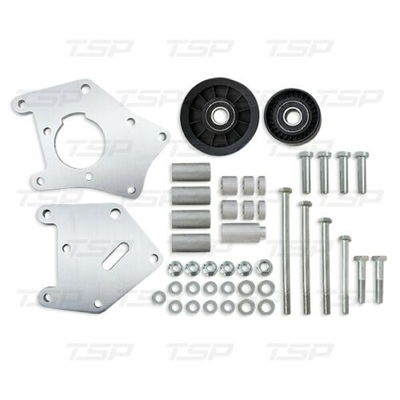

TSP's LS relocation brackets raise the engine accessories to clear the way for a more narrow frame. Composed of high-quality, lightweight aluminum, these brackets are ideal for any LS engine where space is an issue. This bracket set will mount a Sanden SD-7 A/C compressor high on the passenger side. Also available is the bracket to relocate the alternator and power steering pump (TSP #81203). They are all offered in natural and black finishes to complete any look

.

SPECIFICATIONS

BRACKET MATERIAL6061-T6 Billet Aluminum
A/C COMPRESSOR TYPESanden 508
POWER STEERING PUMP PULLEYNot Included
POWER STEERING PUMP PULLEY TYPEGM #12568997
BELT TENSIONERNot Included
BELT TENSIONER TYPEGM #12569301
SERPENTINE BELTNot Included
INCLUDEDInstruction Manual

FITMENT

CHEVROLET SMALL BLOCK V8 GEN. III/IV (LS-BASED)

  • 4.8 L / 293 in3
  • 5.3 L / 325 in3
  • 6.0 L / 364 in3
  • 6.2 L / 376 in3 LS3

FITMENT NOTES

  • Fits engines from 1999-2015 truck applications and the 2010-2015 Camaro
  • Due to the relocation of certain accessories, may not fit in stock LS applications (See dimensions)
