OVERVIEW

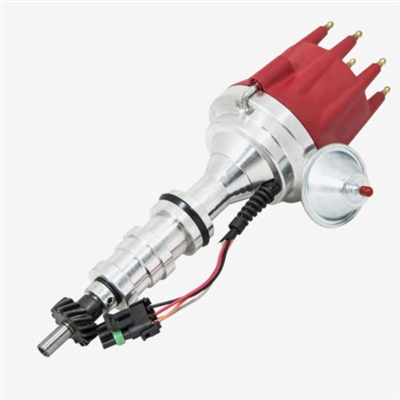

TSP’s Pro Series Ready to Run Distributor is perfect for a street performance ignition upgrade. It features a CNC-machined billet aluminum body and hardened steel shaft, with a sealed ball bearing on top and a sintered steel bushing on the bottom. It also comes with a fully adjustable mechanical advance, vacuum advance, magnetic pickup trigger, and a high-output circuit board module with digital tach output. The dielectric cap comes with solid brass terminals and a color-matched wire retainer.

FULLY ADJUSTABLE MECHANICAL ADVANCE

An important feature on all Top Street Performance Pro Series distributors is the fully adjustable mechanical advance. This allows you to easily modify the distributor to achieve a variety of timing curves. Included with all Pro Series distributors are four bushings of varied size. The bushing determines the mechanical advance the distributor can achieve. Also included are six springs, with two at each level of tension. The springs control the rate at which the distributor reaches the advance.

HIGH-OUTPUT CIRCUIT BOARD MODULE

What separates a Ready to Run from a Pro Billet is the top-of-the-line internal ignition module. Build using the latest circuit board technology, this module eliminates the need for external ignition control, such as a CDI box. It also comes with a digital tachometer output. With a Pro Series Ready to Run distributor, just hook up your ignition coil, and you're good to go.

SPECIFICATIONS

TRIGGER STYLE	Circuit Board Module with Magnetic Pick-up
ADVANCE TYPE	Mechanical and Vacuum
CAP STYLE	Male
MECHANICAL TACH DRIVE	No
SLIP COLLAR	No
COIL INCLUDED	No
COIL TYPE	External
RECOMMENDED COIL OUTPUT	35,000+ Volts
GEAR MATERIAL	Chromoly Steel
HOUSING MATERIAL	Machined Aluminum
IGNITION BOX REQUIRED	No
MARINE USE	No
CYLINDERS	8
INCLUDED	3 Bushings and 4 Springs for Mechanical Advance Color-Matched Spark Plug Wire Retainer with Screws Vacuum Advance Block-off Plate (Black) Power Extension Cable Tachometer Output Extension Cable

FITMENT

FORD BIG BLOCK FE V8

• 5.4 L / 330 in3 commonly referred to as "FT"
• 5.8 L / 352 in3
• 5.9 L / 360 in3
• 6.4 L / 390 in3
• 6.7 L / 406 in3
• 6.7 L / 410 in3
• 7.0 L / 427 in3
• 7.0 L / 428 in3

FITMENT NOTES

• Will not fit heavy duty applications
