OVERVIEW

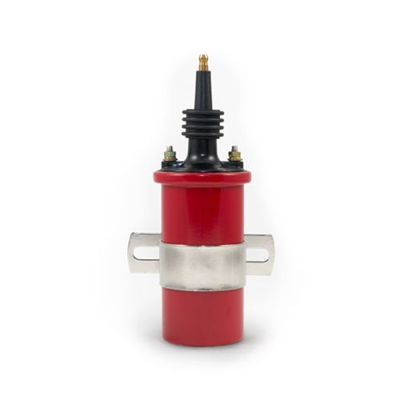

TSP brings you the classic canister - sometimes called "beer can" - style ignition coil. Constructed of high-quality materials, utilizing top manufacturing standards, this coil provides superior quality and performance. With a whopping 45,000-volt output, you'll have more than enough spark for any performance distributor set-up.

SPECIFICATIONS

COIL STYLE	Canister
INTERNAL CONSTRUCTION	Oil-filled
PRIMARY RESISTANCE	0.700 ohms (Ω)
SECONDARY RESISTANCE	4,700 ohms (Ω)
MAXIMUM VOLTAGE	45,000 volts (V)
SPARK DURATION	350 microseconds (µS)
PEAK CURRENT	140 milliamperes (mA)
TURNS RATIO	100:1
INDUCTANCE	8.0 millihenrys (mH)
COIL SHAPE	Round
HOUSING MATERIAL	Billet Aluminum
COIL WIRE ATTACHMENT	Male
INCLUDED	Mounting Bracket

FITMENT

THIS PRODUCT IS UNIVERSAL

• Intended for high-performance distributor ignition set-ups
• Because of its oil-filled design, should only be mounted in a vertical position
•
